LiDAR

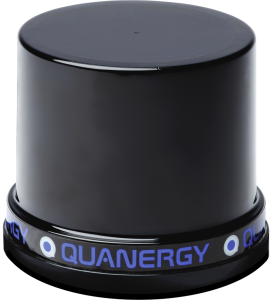

M8™ LiDAR Sensor
High-Performance LiDAR Sensor provides superior 3D perception using multiple eye-safe laser beams and time-of-flight (TOF) measurement technology.
The robust M8 LiDAR sensor family features a wide field of view, long measurement range, high accuracy, and fine resolution to reliably solve the most challenging real-world applications.
In addition, the M8 LiDAR sensor triggers actions based on real-time scenario analysis powered by QORTEX™, smart perception software.
Operation: Day and night vision (No IR heat-signature requried)
Point Density: 3D point cloud with up to 1.3M points per second with 3 returns
Range: Up to 200M
Environmental Protection: IP69K
Field of view (FOV): horizontal: 360º, vertical: 20º (+3º/-17º)
Electrical Power Support: Power Over Ethernet (PoE+)
Reliability: Over 60,000 Hours MTBF
Angular resolution: 0.03-0.13º depending on frame rate
